High Temperature Insulation 95 Porcelain Ceramic Positioning
Accessories
Product Overview
Alumina ceramics have many excellent properties, so they are widely
used in the world. Alumina ceramics have a Vickers hardness of
15GPa, a density of about 3.75g/cm3, a compressive strength of
about 2100MPa, a flexural strength of 300Mpa, a volume resistance
of 1014Ω·m, an expansion coefficient similar to that of metals, and
good chemical stability.
The positioning pin is based on the workpiece hole as the
positioning reference and participates in the part that limits the
freedom of the object. The process of determining the correct
position of a part in a fixture is usually called positioning. The
positioning pin is required to completely enter the positioning
hole when positioning.
Product parameter table
Material
Project | Alumina AL203 | Silicon carbide sic | Silicon nitride sin | Silicon nitride sin |
| Color | Ivory | black | black | Milky white, gray black |
| Content(%) | 99.5 | …… | …… | …… |
| Main features | - Excellent high frequency electrical insulation
Good wear resistance preservative Strong High hardness
| - Good high temperature strength
- High thermal conductivity
- Strong alkali resistance
- Wear-resistant
- Lightweight
| - Good high temperature strength
- Strong impact resistance
- Strong corrosion resistance
- Lightweight
| - High strength and high impact resistance
- Good self-lubricating
- Strong alkali resistance
- Smooth surface
- Good toughness
|
| The main purpose | - Wear parts
- High temperature parts
- Corrosion resistant parts
| - Machinery Seal
- Sliding parts
- High temperature parts
| - Molten metal parts
- Metal plasticity
- Processed parts
| - Industrial knives
- Pump parts
- Wear parts
|
| Density | Kg/m³ | 3.9*10 | 3.16*10 | 3.3*10 | 6.0*10 |
Mechanical behavior
| Vickers hardness | Gpa | 16.0 | 23.0 | 14.0 | 13.2 | 12.7 |
| Flexural strength | Mpa | 360 | 450 | 1020 | 1000 | 1470 |
| Compressive strength | Mpa | 2350 | …… | …… | …… | …… |
| Fracture toughness | Mpa | 4 | 2-3 | 7 | 4-5 | 4-5 |
Thermal performance
| Linear expansion coefficient | 40-400℃ | ×10-5/℃ | 7.2 | 3.7 | 2.8 | 10.5 | 10.8 |
| 40-800℃ | 8.0 | 4.4 | 3.3 | 11.0 | 11.3 |
| Thermal conductivity | W/(m·k) | 32 | 200 | 27 | 3 | 3 |
| Specific heat | J/(kg·k) | 0.78*10 | 0.67*10 | 0.65*10 | 0.46*10 | 0.46*10 |
| Thermal shock resistance (in water) | ℃ | 250 | …… | ＞800 | 300 | 350 |
| Electrical performance | Dielectric strength | V/m | 15*105 | …… | 13*105 | 11*105 | …… |
| Volume resistance(20℃) | Ω·cm | ＞1014 | 108 | 1014 | 1013 | …… |
| Dielectric constant | …… | 9.6 | …… | 9.9 | 33 | …… |
| Loss factor | ×10-4 | 10 | …… | …… | 520 | …… |
Product advantages
- Size and thermal stability
- High performance features
- Hydrolysis resistance
- Self-lubricating performance
- Extended service life
- High hardness: the hardness of zirconia is second only to diamond
- High wear resistance: High hardness and good red hardness determine
that the zirconia positioning pin has excellent wear resistance
- High cost performance: the service life of zirconia positioning
pins is several times that of ordinary positioning pins
For more information about ceramic positioning pins, please follow
us!
Applications
- Shipbuilding, bridges, large-scale structural facilities
- Lighting industry
- Electronics and electric heating industry
With the development of science and technology and the improvement
of manufacturing technology, new varieties continue to appear, and
they will be used more and more in the fields of modern industry
and modern science.

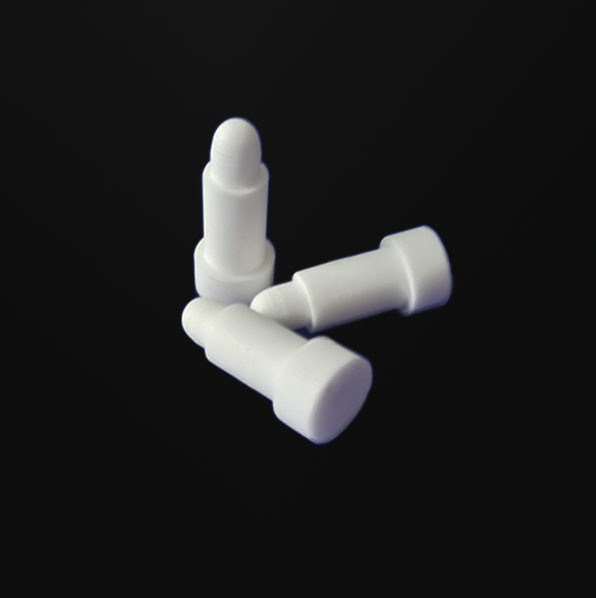

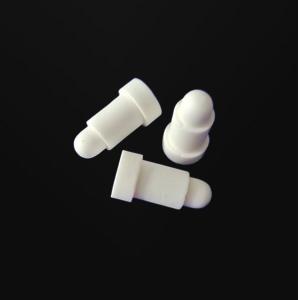

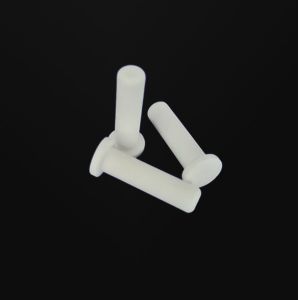

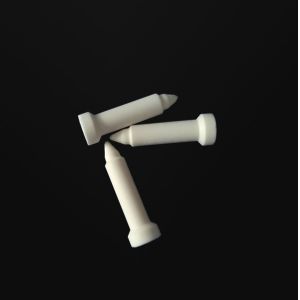

Product Picture
Yixing Weite Ceramics Co., Ltd. is located in Dingshu Town, Yixing,
the hometown of Zisha pot. It is a professional manufacturer of
precision alumina and silicon nitride ceramic products integrating
scientific and technological development, production and sales.
Main products: 95, 99 alumina ceramics, silicon nitride ceramic
products, ceramic liners, welding ceramics, electrical ceramics,
industrial ceramics, etc. Welding ceramics: argon arc welding
ceramic nozzle, air plasma protective cover, shunt, stud welding
porcelain ring, ceramic gasket for submerged arc welding.
Electronic ceramics: ceramic ignition head for high, medium and low
voltage igniters, porcelain base for various electrical connectors.
Industrial ceramics: various mechanical ceramic parts, textile
ceramics, special insulating ceramic ring for polysilicon reduction
furnace, etc. The company covers an area of 15 mu, with two
standardized workshops. There are one kiln for high, medium and low
temperature, 58 sets of presses and lathes. A set of isostatic
pressure equipment.
Product packaging
Packed in carton
FAQ
1. Are you a businessman or a manufacturer?
We are a company, we have our own factory
2. How long is your delivery time?
Negotiable
3. Can the product be customized?
Can be customized
4. What is the product packaging?
Carton or according to customer requirements
