High Hardness And Wear-Resistant Ceramic Positioning Pin Ceramic
Electronic Accessories
Product Overview
According to our understanding, the role of positioning pins is to
limit the free movement of items. Compared with traditional
material positioning pins, the advanced ceramic materials used by
the company occupy a greater advantage, such as zirconia ceramic
positioning pins, alumina ceramic positioning pins, silicon nitride
positioning pins.
There are 5 types of positioning pins:
1. Fixed positioning pins
2. Interchangeable positioning pins
3. Cone positioning pin
4. Cutting edge positioning pin
5. Standard diamond positioning pin
Product parameter table
Material
Project | Alumina AL203 | Silicon carbide sic | Silicon nitride sin | Silicon nitride sin |
| Color | Ivory | black | black | Milky white, gray black |
| Content(%) | 99.5 | …… | …… | …… |
| Main features | - Excellent high frequency electrical insulation
Good wear resistance preservative Strong High hardness
| - Good high temperature strength
- High thermal conductivity
- Strong alkali resistance
- Wear-resistant
- Lightweight
| - Good high temperature strength
- Strong impact resistance
- Strong corrosion resistance
- Lightweight
| - High strength and high impact resistance
- Good self-lubricating
- Strong alkali resistance
- Smooth surface
- Good toughness
|
| The main purpose | - Wear parts
- High temperature parts
- Corrosion resistant parts
| - Machinery Seal
- Sliding parts
- High temperature parts
| - Molten metal parts
- Metal plasticity
- Processed parts
| - Industrial knives
- Pump parts
- Wear parts
|
| Density | Kg/m³ | 3.9*10 | 3.16*10 | 3.3*10 | 6.0*10 |
Mechanical behavior
| Vickers hardness | Gpa | 16.0 | 23.0 | 14.0 | 13.2 | 12.7 |
| Flexural strength | Mpa | 360 | 450 | 1020 | 1000 | 1470 |
| Compressive strength | Mpa | 2350 | …… | …… | …… | …… |
| Fracture toughness | Mpa | 4 | 2-3 | 7 | 4-5 | 4-5 |
Thermal performance
| Linear expansion coefficient | 40-400℃ | ×10-5/℃ | 7.2 | 3.7 | 2.8 | 10.5 | 10.8 |
| 40-800℃ | 8.0 | 4.4 | 3.3 | 11.0 | 11.3 |
| Thermal conductivity | W/(m·k) | 32 | 200 | 27 | 3 | 3 |
| Specific heat | J/(kg·k) | 0.78*10 | 0.67*10 | 0.65*10 | 0.46*10 | 0.46*10 |
| Thermal shock resistance (in water) | ℃ | 250 | …… | ＞800 | 300 | 350 |
| Electrical performance | Dielectric strength | V/m | 15*105 | …… | 13*105 | 11*105 | …… |
| Volume resistance(20℃) | Ω·cm | ＞1014 | 108 | 1014 | 1013 | …… |
| Dielectric constant | …… | 9.6 | …… | 9.9 | 33 | …… |
| Loss factor | ×10-4 | 10 | …… | …… | 520 | …… |
Product advantages
- High hardness: the hardness of zirconia is second only to diamond
- High wear resistance: High hardness and good red hardness determine
that the zirconia positioning pin has excellent wear resistance
- High cost performance: the service life of zirconia positioning
pins is several times that of ordinary positioning pins
Applications
- Shipbuilding, bridges, large-scale structural facilities
- Lighting industry
- Electronics and electric heating industry
With the development of science and technology and the improvement
of manufacturing technology, new varieties continue to appear, and
they will be used more and more in the fields of modern industry
and modern science.

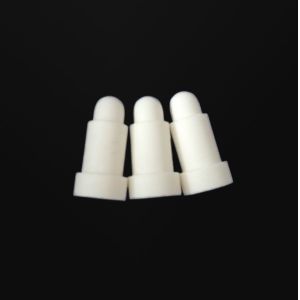

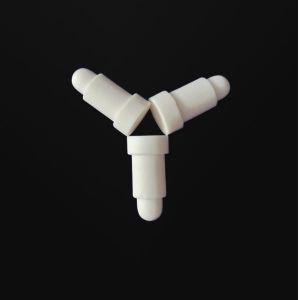

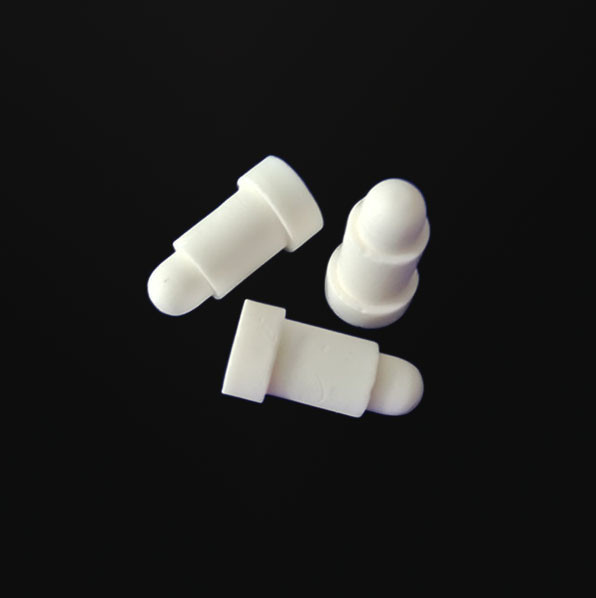

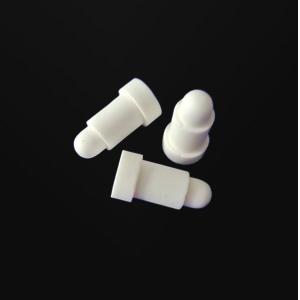

Product Picture
All kinds of positioning pins, porcelain tubes, porcelain rods and
electrical ceramics can be customized and processed with samples.
Product packaging
Packed in carton
FAQ
1. Are you a factory or a trading company?
Answer: We are a factory, welcome to visit our factory.
2. What is the price of your product?
Answer: Please do your best to inquire about each detailed
requirement including quantity, size, color, packaging, etc., then
we will give you an accurate quotation at the first time.
3. How to guarantee the quality of the products we ordered from
you?
Answer: The company has strong technical force, advanced production
equipment and perfect testing methods. The products have beautiful
appearance and quality assurance. The company has passed ISO9001:
2000 international quality system certification, and the product
sales network covers all parts of the country; more than 80% The
products are exported to Asia, Europe, and the United States, and
enjoy a good reputation in the domestic and foreign markets. The
company has strong technical support, excellent management
personnel, and perfect customer service. Regardless of product
quality or distribution services, they have won the praise of
customers.
4. Is it possible to make the product our own design?
Answer: Yes! We accept customized orders. And we also have an
experienced R&D team, and will do everything in accordance with
your expectations!
